Dana 300 Billet Adapter Flip Ring

Dana 300 Billet Adapter Flip Ring

$199.00
In stock
Product Details

The Dana 300 Billet Adapter/Flip Ring is 7/8" thick allowing you to mate and flip a Dana 300 to driver side front output onto Aisin flange style transmissions which include the 4wd versions of the AX15, AX5, and the AW4. To mate a Dana 300 to the 87-90 AW4 or the AX5 will require a 21sp Input for the Dana 300. All clocking rings are engraved with wide set location for ease of installation.

Clocking rings are precision CNC Machined for accurate bore alignment. The Flip Ring allows you to flip your Dana 300 to be used as a Driver Side Drop, with additional clocking positions.


Clocking Positions Available:

"Stock" Position (Drivers Side Front Output 1.65" Below Input Centerline, Case is 6" Below Input Centerline)
Up - 8* = ~ 1.2"
Up - 16* = ~ 2.4"
Up - 24* = ~ 3.6"

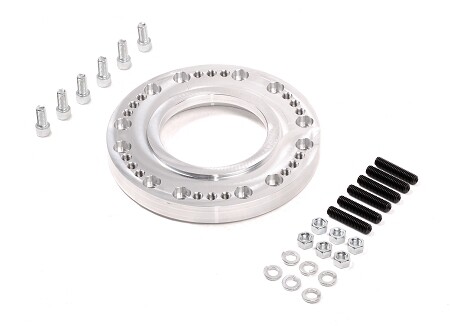

Included in this Kit:

1x Dana 300 Adapter/Flip Ring
6x 3/8"-16 x 1" Socket Head Cap Screws
6x 3/8"-16 x 2" Shouldered Studs
6x 3/8" Lock Washers
6x 3/8"-16 Hex Nuts
